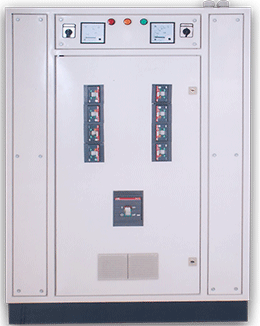

HEC Power Bank has separate Cableways on both side of the basic module for termination of incoming & outgoing MCCBs. The metering system can be assembled on top of the basic module. Two types of metering module are available, namely, analog and Digital. The metering module is provided with selector switches. The Main Module is basically consisted of two parts, incoming module & out going module. They are available with 4, 6, 8, and 12 ways outgoing circuits suitable for mounting three pole MCCBs up to 250A. Adequate space is provided for terminating the cable onto the MCCBs. And the incoming module accommodates single MCCBs up to 250A in 200A/250A Panel Board System and up to 400A in 320A/400A Panel Board System. They are all supplied with their own dedicated set of preformed copper interconnections. For 500A/630A/800A Panel Board System Incoming module accommodates single MCCBs up to 800A.
As per the requirements of our clients we produce attractive kinds of HEC PB
SL No. | Model Name | Height(with out metering system) | Length | Depth |
---|---|---|---|---|
01 | HEC250P4W | 1000 | 960 | 200 |
02 | HEC250P6W | 1000 | 960 | 200 |
03 | HEC250P8W | 1000 | 960 | 200 |
04 | HEC250P10W | 1050 | 960 | 200 |
05 | HEC250P12W | 1050 | 960 | 200 |
SL No. | Model Name | Height(with out metering system) | Length | Depth |
---|---|---|---|---|
01 | HEC400P4W | 1150 | 960 | 200 |
02 | HEC400P6W | 1150 | 960 | 200 |
03 | HEC400P8W | 1150 | 960 | 200 |
04 | HEC400P10W | 1350 | 960 | 200 |
05 | HEC400P12W | 1350 | 960 | 200 |
500A/630A/800A Panel Board System is produced as per as the requirements of the clients
